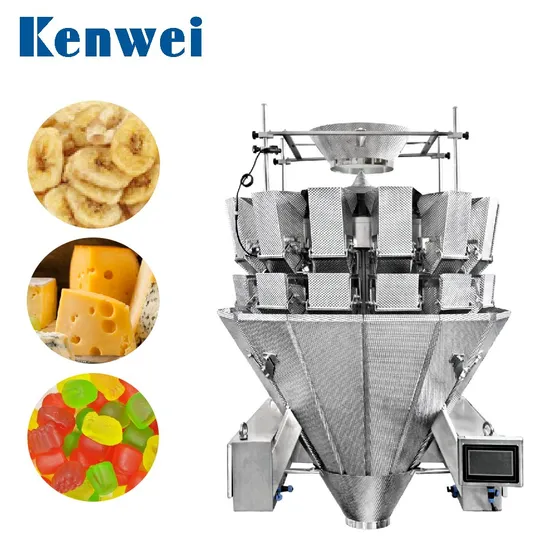

Cheese Packing Machine with 10 Head Combination Weigher

• Overview
• Company Profile

Overview

Basic Info.

Model NO.	JW-A14(A14-1-12)
Type	Filling Machine
Forming Species	Bag Moulding
Forming Function	Filling
Driven Type	Electric
Material Type	Paste
Packaging	Bag
Packaging Material	Plastic
Identify Code	A10-1-12
Max Speed	60 P/M
Hopper Volume	1.6L/2.5L
Driving System	Step Motor
Power Requirement	220V/1500W/50Hz//60Hz/15A
Options	Dimple Plate/Timing Hopper/Reject Device
Packing Dimension(mm)	1620(L)X1100(W)X1420(H)
Transport Package	Wooden Crate Package
Specification	380kg
Trademark	Kenwei
Origin	Gungdong, China
Production Capacity	500 Sets/Year

Packaging & Delivery

Package Size162.00cm * 110.00cm * 110.00cm Package Gross Weight380.000kg

Product Description

Features :

1. High-precision, high-standard special load cell,resolution up to 2 decimal places.2. Program recovery function can reduce operation failures, Support multi-segment weight calibration.3. No products auto pause function can improve weighing stability and accuracy.4. 100 programs capacity can meet various weighing requirement,user-friendly help maun in touch screen contributes to easy operation.5. Linear amplitude can be adjusted independently,can make the feeding more uniform.6. 15 languages available for global markets.

Techanical and Character :
1. Speed adjustable rotary top cone is suitable for different product feeding.2. Enhanced linear vibrator improves the flowability of material.3. The declinational special linear vibrator pan, ensure smooth feeding.4. 60°dimple discharge chute contributes to less sticky problems.5. Optional weighing type material detection, accurate control of feeding time, material thickness, to ensure the accuracy of the weighing;6. The whole cast aluminum thickening machine case enhanced the strength of the machine, and shorten sample stable time.




Technical Specification :

Model	JW-A10	JW-A12	JW-A14
Identify Code	A10-1-12	A12-1-12	A14-1-12
Weighing Range	10-1000g	10-1500g	10-1500g
Accuracy	X(0.5)	X(0.5)	X(0.5)
Max Speed	60P/M	60P/M	100P/M
Hopper Volume	1.6L / 2.5L
Control Panel	7'' Touch Screen
Options	Dimple Plate/Timing Hopper/Printer/Reject Device
Driving System	Step Motor
Power Requirement	220V/1000W/ 50/60Hz /10A	220V/1200W/ 50/60Hz /10A	220V/1500W/ 50/60Hz /10A
Packaging Dimension (mm)	1620(L)X1100(W)X1110(H)	1700(L)X1110(W)X1130(H)	1750(L)X1130(W)X14200(H)
Gross Weight	380kg	450kg	490kg

Application:

It is suitable for weighing soft and sticky material, such as cheese, jelly candy,cotton candy, preserved fruits, candied fruit, etc.

Company Profile

Our Factory:

Certificate:


Exhibition: Activity:

Service:

Pre-sale InquiryWe will help you customize an appropriate weighing and packing solution based on your requirements and specific circumstances.Installation ServiceWe will send professional technicians for on-site installation and commissioning upon request.Maintenance ServiceKenwei provides long term maintenance service,any maintenance parts are free within the warranty period and only charge parts expensed if your warranty has expired.Employee TrainingKenwei offers free technical training for our clients to fully master correct product maintenance techniques.Custom ServiceKenwei designs custom production lines for our clients according to specific weighing and packing products,output,packing styles,factory area and other factors.

Guangdong Kenwei Intellectualized Machinery Co.,Ltd. is currently a large production base of multihead weighers. As a professional manufacturer, we devote to R&D and manufacturing of multihead weighers, linear weighers, check weighers, metal detectors with high speed and high accuracy. We also provide customers with complete automatic weighing and packaging systems to meet the various customized requirements.Kenwei, located in Hi-tech Industrial Zone, owns modern workshop over 21000 square meterwith annual production capacity of more than 5,000 sets of multihead weigher . We have a high-quality team that professional technicians more than 30% with comprehensive capacity from design and development, manufacturing, marketing, installation and commissioning, technical training,after-sales services and providing automatic weighing packaging system customization.With the development of international markets, more and more marketing and service networks are established all over the world. We won trusts and good reputations for good and fast services, which also help us to establish good brand image in the packaging machinery industry We are now selling machines to more than 80 countries in the world.
